PINK tv active
Application_________________________
VIDEO
BROADCAST
RECORDING
PROJECT
STUDIO
Arrangement/Configurations___________
STEREO
SURROUND
ADVANCED
SURROUND
MODUMO
Features___________________________
2
identical 80W amplifier
eliminates time related distortion
molded
waveguide baffel
Lower X-Over FC
Exponential coupling (Tweeter/Air)
eliminates reflections,
minimizes distortion
linearize the phase response
wide dispersion pattern
digital
"quick delivery" power supply
cycles 2000 times faster
hum canceling
Tight and accurate Low End
HDS
Driver
Fiberglas membrane
Vented Coil System
Extrem low compression
Superior transient response
Perfect coil cooling
Level
control
Sensitivity adjustable
-40 to + 10dB
Low
end control
Corrects Low end from -6 to +4 dB
Room compensation
Corner/Wall placement Eq
High
end control
Corrects High end from -4 to +4 dB
Room compensation
Adjustable (Listening taste)
  Download
  Product
broschure (245kB) engl.
  Diagram/Data
sheet (637kB) engl.
  EMES
STUDIO MONITOR SYSTEMS
  Josef-Drexler-Str.
8
  89331
Burgau
  GERMANY
  Tel:
**49-(0)8222-9617072
|
|
Anywhere

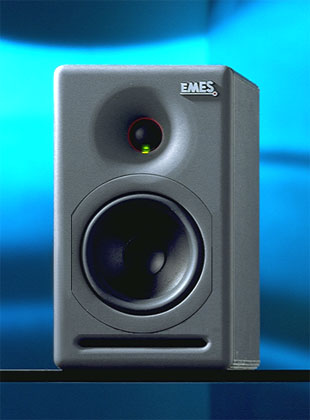

were small, true sounding monitor is needed the PINK tv active are just
perfect.
Specified for
the audio/video industrie, the PINK tv active meets all the demands
for project studios, surround sound and high quality multimedia applications,
as well. It's compact 2 way package (170x290x200mm), combined with the
shielded magnetic field and the excellent stereo imaging, makes them
very handsam to any set up required, even at very close listening distances.
As always at EMES, matched high quality drivers are chosen, because
to us they are the most critical part in a high quality Studio Monitor
System!
The Low range (68 - 1700Hz) is reproduced by a 14cm Fiberglass Membrane
HDS-driver. This extrem low compression driver is contructed in a way
so the air, normally sealed in the Air gap of the magnet system, now
can circulated. Finally the Air flow is nearly non resistant to the
coils movement, which results in very accuarate membrane excursion.
The Impuls response and Low End precision is realy remarkable for a
Monitor this size.
The high frequency section is molded into the baffel as a radial horn,
coupled with a 25mm textile neodymium tweeter! The radial horn element
is constructed in a way which minimizes distortion (see TDH diagram),
allows us to use it down to 1700 Hz, mechanicaly align the Woofer and
Tweeters Coil position and delivers a very homogenius dispersion pattern,
so the higher frequencies are nicely distributed into the room!
The active
version has two identical build in 80W rms amplifiers which deliver
a powerfull and optimized output. We at EMES always use identical amplifiers,
to have the lowest time related distortion possible.
Different designs or just different
wattage cause these time related distortion. This is not what we are
aiming for. This is one of the many design criterias to the EMES audio
performance. To adjust the monitors to your personal listening taste
and room acoustics, we implemented dip-switches for input level, bass-
and high frequency adjustments. All of them have Dip-Switches to allow
precise and identical settings for all related monitors within the playback
system (Stereo/5.1/Advanced Surround).
We ship all our monitors as matched
pairs within a tolerance less than ±0,5 dB!

|
PINK
tv active - System |
|
|
construction |
2
way bass-reflex |
concept |
One
& One Monitor with Wave-guide |
fc
responce free field |
68
- 20.000 Hz +/- 2 dB |
fc
responce in wall |
68
- 20.000 Hz +/- 1,5 dB |
system
low fc responce |
66
Hz - 3 dB |
max.
sensitivity |
108
dB |
max.
sensitivity long term |
106
dB |
harmonic
distortion at SPL <100Hz |
0,8
% |
harmonic
distortion at SPL >100Hz |
0,4
% |
Bass
driver |
1
x 5" fibre composite |
Midrange
driver |
-
|
Hf
driver |
25mm
Neodymium |
shielded
(anti magnetic) |
yes
|
weight |
5,5
Kg |
dimensions
w/h/d in mm |
170
x 290 x 200 mm |
pair
difference |
+/-
0,5 dB |
PINK
tv active - Electronic |
|
number
of amplifier |
2
|
power
handling rms Lf/Hf |
2
x 60 W
|
power
handling peak Lf/Hf |
2
x 80 W
|
connector
type |
XLR
(female)
|
input
impedance |
10
kOhm
|
input
sensitivity |
16
steps, from 0,45 - 4,5V
|
X-over
fc |
1,500
Hz
|
low
pass filter |
35
Hz / - 18dB
|
Hf
level control |
16
steps, from -4 dB - + 4 dB
|
Lf
gain control |
16
steps, from -6 dB - + 4 dB
|
distortion
at acoustic max. output |
0,1%
|
signal
to noise ration |
-102
dB
|
kind
of power supply |
digital
|
operating
voltage |
115/230
V +/- 20%
|
power
consumtion at max. output |
180
W
|
|
|
|
